LED downpipe lighting
The constantly advancing technology of LED lighting enables a new system that indirectly backlights rainwater downpipes and thus effectively highlights the façade of residential buildings or industrial halls. This turns the buildings into real eye-catchers in the dark and offers homeowners, architects and craftsmen completely new design possibilities.
A highlight in the dark AND in the light

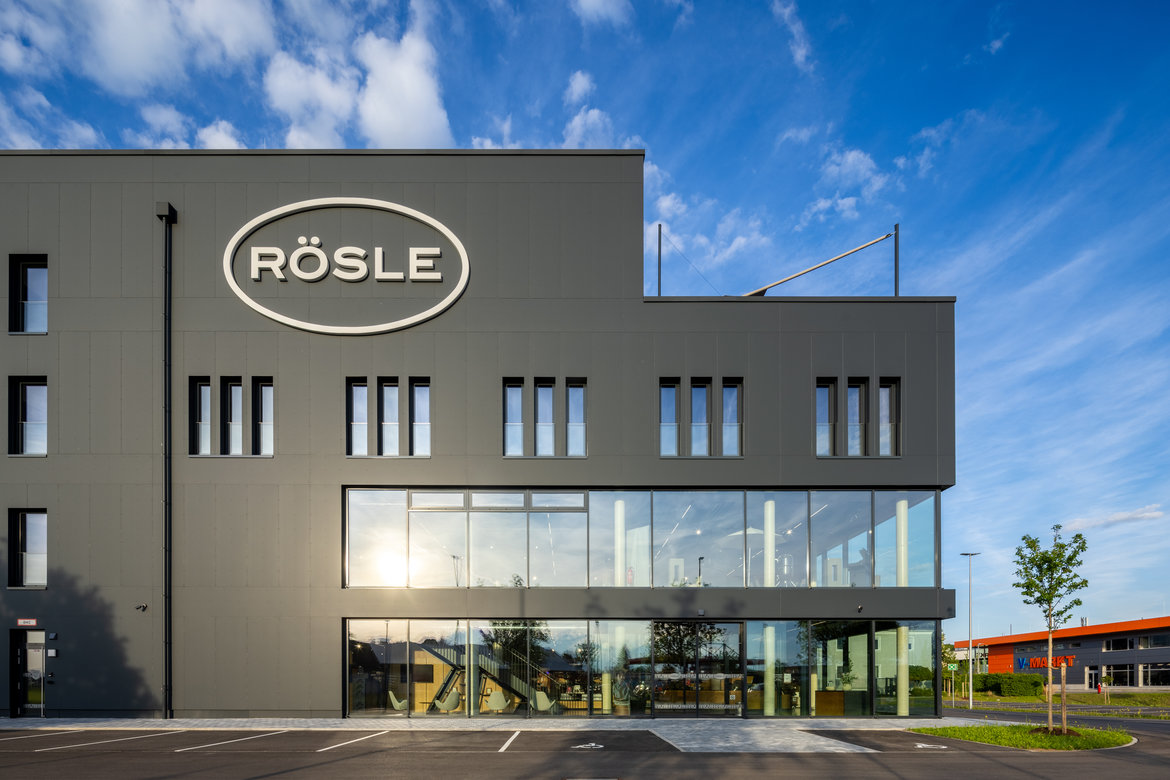

Whether by day or night: The LED downpipe line from GRÖMO makes a beautiful façade in all lighting conditions.
Exterior lighting plays a major role in the overall appearance of a building, but also provides greater safety and functionality. LED lighting systems are now the first choice for efficient, long-lasting and aesthetically pleasing solutions in, on and around the home – in both the private and commercial sectors.
-
A highlight in the dark AND in the light

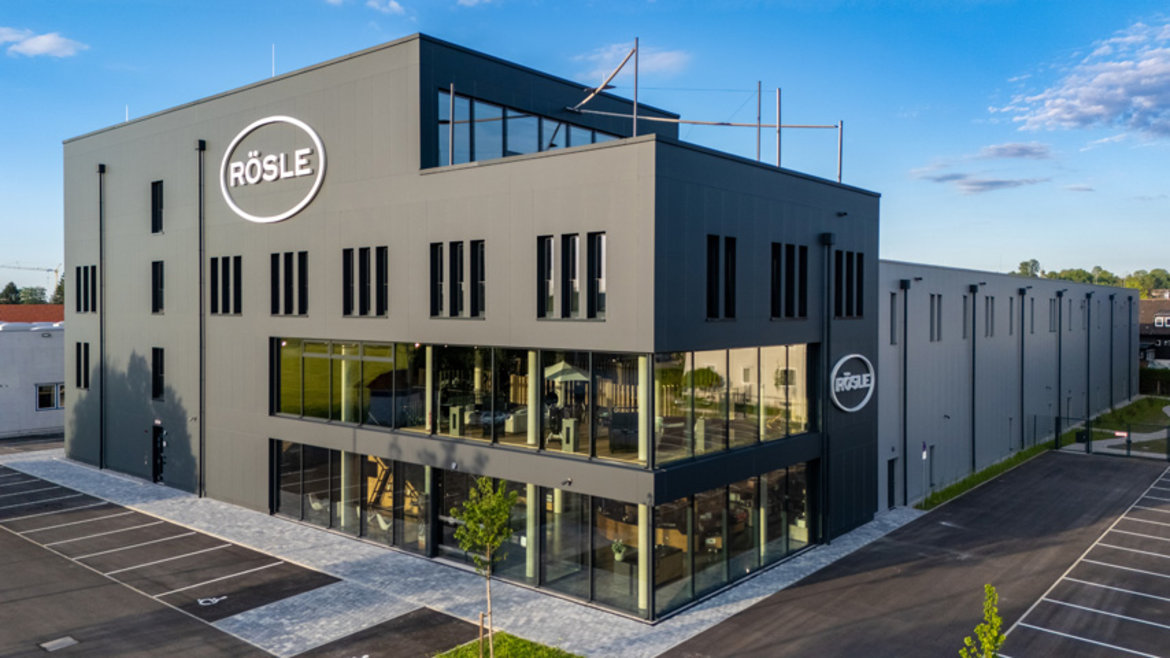

Whether by day or night: The LED downpipe line from GRÖMO makes a beautiful façade in all lighting conditions.
Exterior lighting plays a major role in the overall appearance of a building, but also provides greater safety and functionality. LED lighting systems are now the first choice for efficient, long-lasting and aesthetically pleasing solutions in, on and around the home – in both the private and commercial sectors.
ELEGANT AND DURABLE
The LED downpipe lighting is made up of various optimally matched components, all of which are weather and UV-resistant. The linear LED light lines also comply with protection class IP67. The light sources are extremely robust and therefore guarantee a future-proof investment with an average service life of around 60,000
hours.
MADE TO FIT
To ensure that the LED lighting encapsulated in the aluminium profile matches the length of the downpipe, LED light lines of different lengths are available, which can also be combined with each other to create individual downpipe lengths. The LED light lines are also available in special lengths by request.
SIMPLE INSTALLATION
The LED linear lights are simply clipped into the screen. If several light lines are to be combined, the cable connections are plugged together at the respective ends. The structure can then be mounted on the downpipe using a specially designed downpipe bracket before the lighting is integrated into the building control system via a ballast or
control unit.
UP TO THE SKY
There are virtually no limits to the range of applications for the innovative GRÖMO LED lighting system. With one supply line, it can be installed up to a maximum height of 11.5 metres, or twice that with two supply lines. Depending on the ballast and control unit, the light sources can be integrated into the house control system and individual accents can be set. Whether residential building or industrial hall, the LED downpipe lighting puts every building in the right light!
GRÖMO LED downpipe lighting is available in zinc or paint-coated as part of the GRÖMO ALUSTAR range in TX anthracite. This means that there are virtually no limits to the range of applications.
-
UP TO THE SKY
There are virtually no limits to the range of applications for the innovative GRÖMO LED lighting system. With one supply line, it can be installed up to a maximum height of 11.5 metres, or twice that with two supply lines. Depending on the ballast and control unit, the light sources can be integrated into the house control system and individual accents can be set. Whether residential building or industrial hall, the LED downpipe lighting puts every building in the right light!
GRÖMO LED downpipe lighting is available in zinc or paint-coated as part of the GRÖMO ALUSTAR range in TX anthracite. This means that there are virtually no limits to the range of applications.
COMPONENTS FOR LED DOWNPIPE LIGHTING
- LED linear light
- Downpipe bracket
- Connection cable
- Screen
- Connecting sleeve
- Silicone protective cap
- Mounting bracket and rivet
Downpipe bracket
The downpipe bracket specially developed for the LED downpipe lighting has a U-shaped extension into which the linear lights and screen are inserted and fastened with a hexagon socket threaded pin. The downpipe bracket thus ensures uninterrupted, visually pleasing and durable fixing of the LED lighting to the downpipe.
Screen
The aluminium profiles of the LED linear lights are mounted in a screen made of a U-shaped metal profile by clipping them into place. The screen fulfils three functions: The profile conceals the technical details and thus ensures the desired appearance. It protects against the weather and serves as a fastener to fix the LED linear lights to the downpipe bracket.
Connecting sleeve
The connecting sleeve enables a seamless transition between the screens of the individual light lines. Simply pushed over the joints, it fixes the screens in place, ensuring thermally induced length compensation and an appealing continuous look.
LED linear light
VarioLED™ IP67 are fully encapsulated, linear LED light lines in an aluminium profile with excellent heat dissipation. A clear polyurethane encapsulation protects them from moisture, dust, dirt and UV radiation. They therefore comply with protection class IP67. The light lines are supplied ready to plug in with a mini IP67 connector at both ends. The integrated HYDRA PRO SW LED strips are single-channel, dimmable strips for 24V constant voltage with an output of 4 W/m (380 lumens) and a colour temperature of approx. 6,700 K. The stimulating, cool white light ensures radiant brightness and good colour rendering on the façade. The linear light sources are robust and have an average service life of around 60,000 hours.
Connection cable
The LED linear light is connected to the ballast or control unit via the two metre long cable with mini IP67 socket.
Silicone protective cap
The top cable plug is sealed with the protective cap to protect it from the weather and as a safety measure.
Mounting brackets and rivets
In order to additionally stabilise the LED light lines for individual special lengths, additional mounting brackets can be fixed to the desired position on the screen using rivets.
